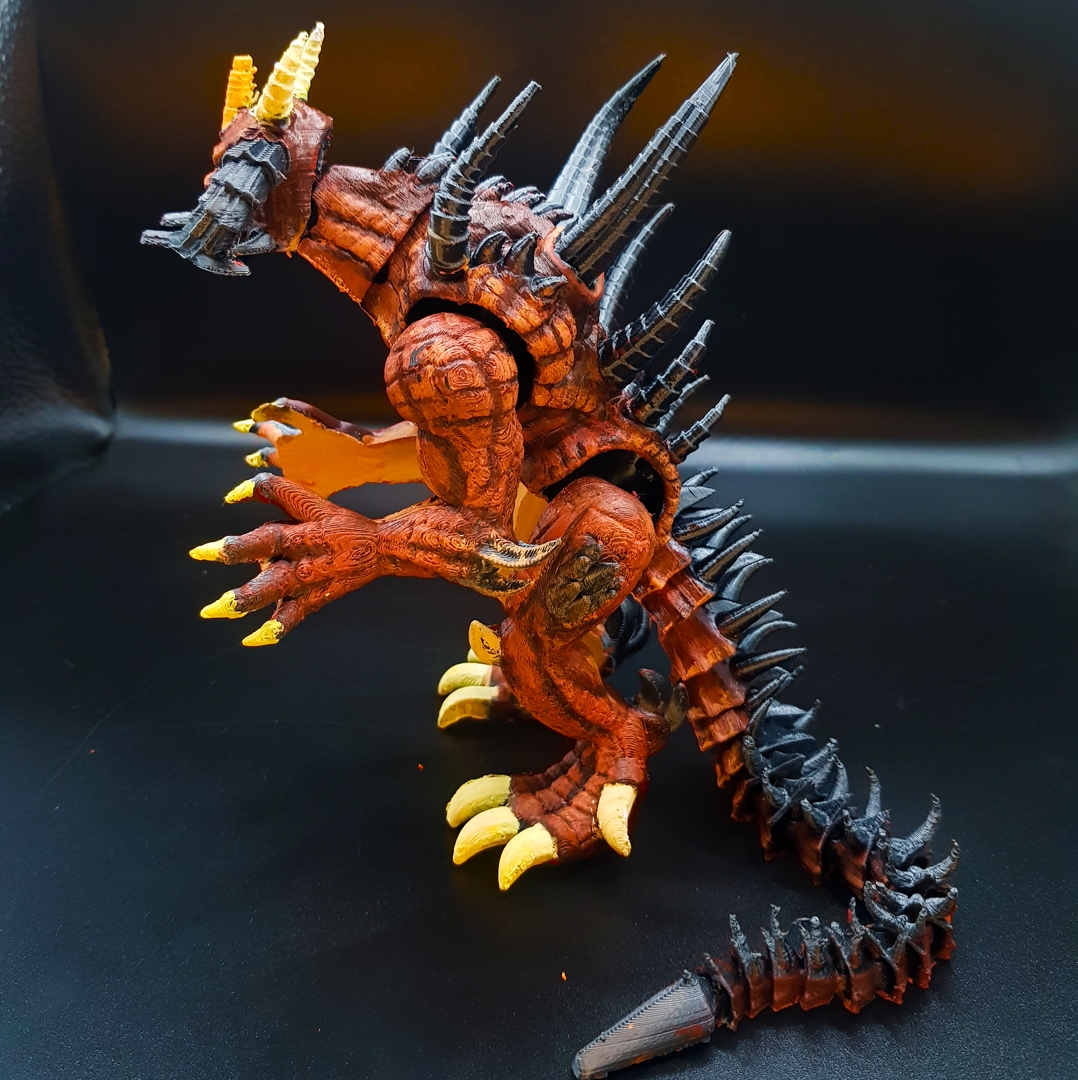

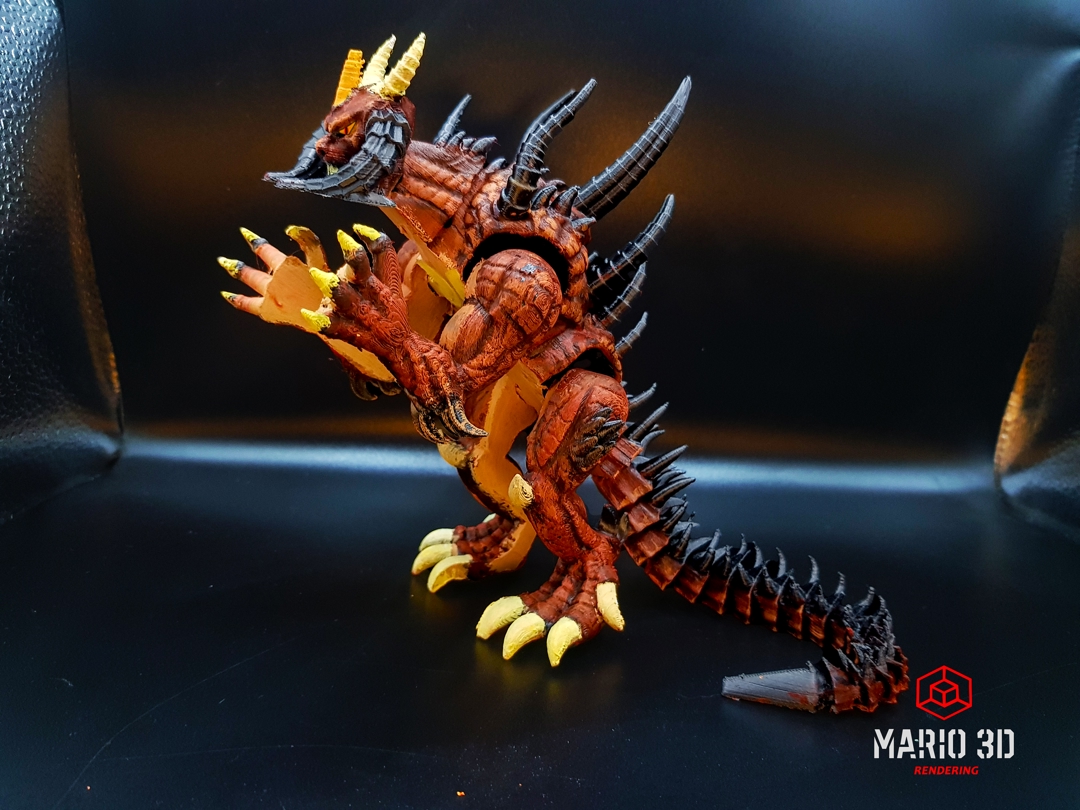

Articulated Devil – 3D Model for Printing

Introducing the Articulated Diablo, a stunning 3D model inspired by the iconic Diablo game character. This design stands out for its high level of detail and its joint system, allowing a unique printing and viewing experience. With a fully articulated design, you can easily rotate the pieces and place them in various poses without the need for additional supports.

Key Features:

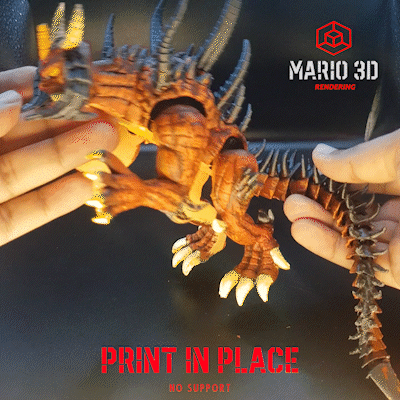

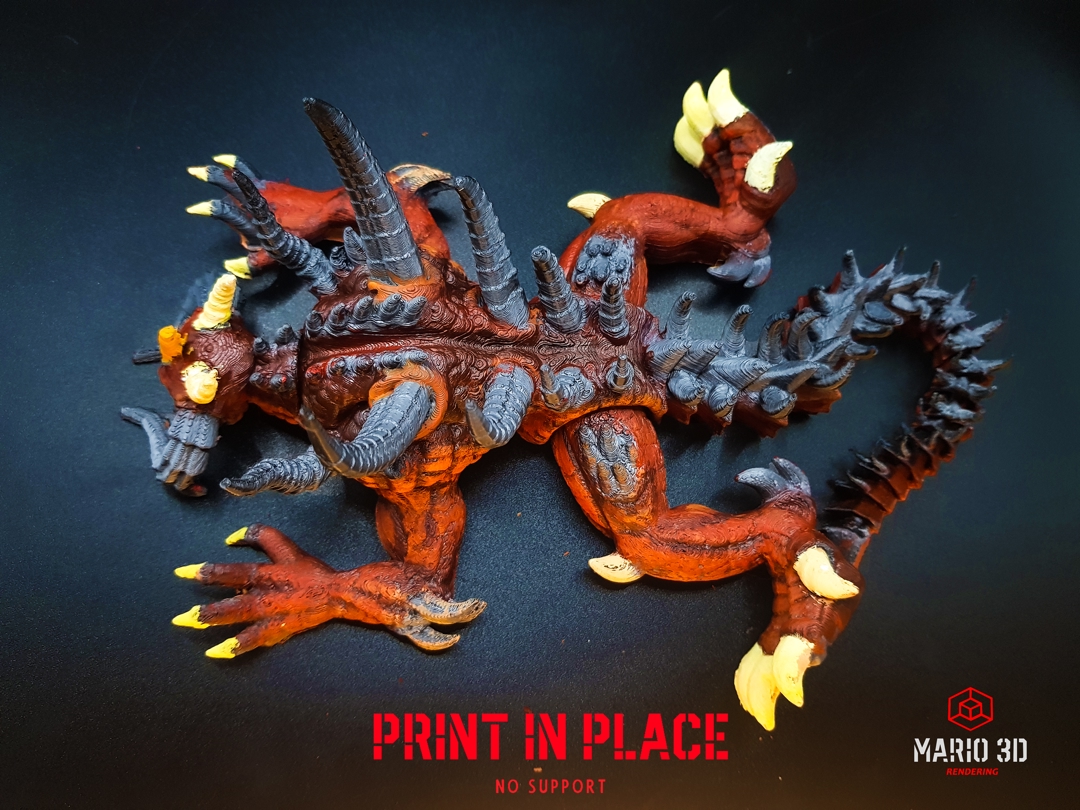

Printing in one piece: The model is designed to be printed in one go. All its joints move fluidly, without subsequent assembly.

Stable position without supports: Thanks to the clever design of the legs and joints, the Diablo can stand on its own. Perfect for displays without the risk of falling.

Not suitable for children: Although it can be used as an articulated figure, it is not recommended for children due to the sharp spikes present in the design.


Printing Parameters:

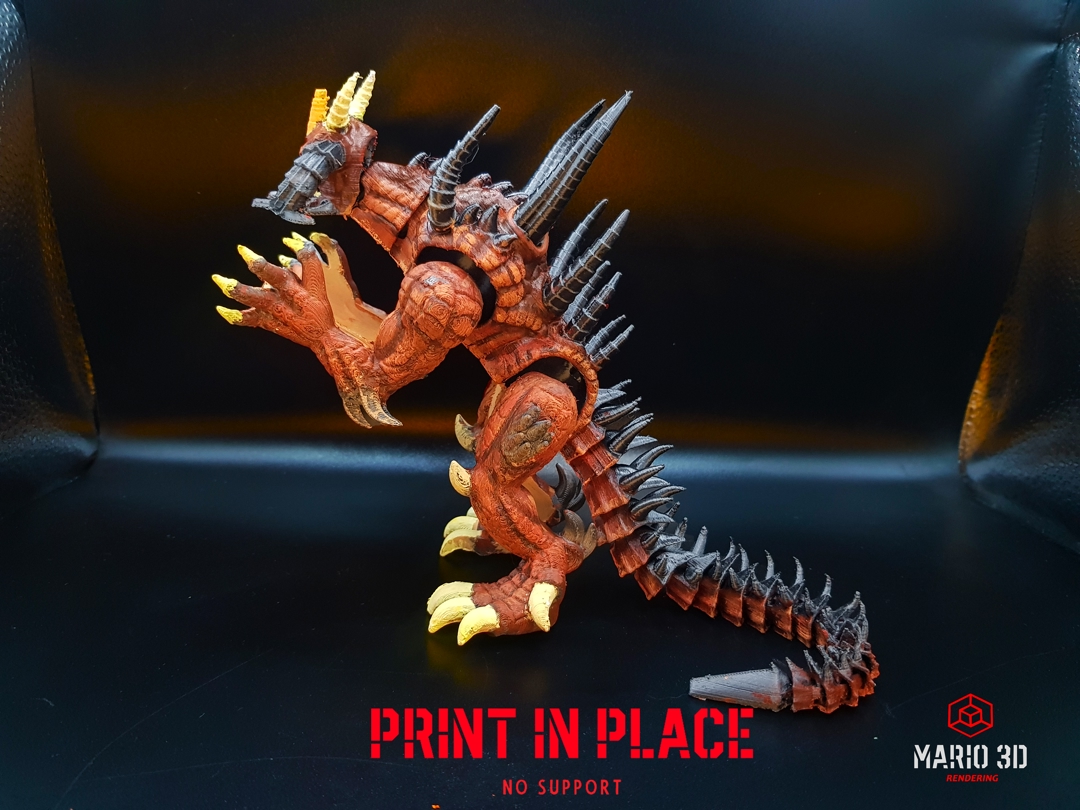

Support-free printing: The model has been optimized to not require supports during the printing process.

Adhesion method: It is recommended to use a brim adhesion method to ensure proper bed adhesion.

Layer height: Set the printer to 0.2 mm layer height for an ideal balance between detail and printing time.

Walls: It is recommended to print with 3 walls for greater structural strength.

Infill density: Use a 20% infill, which is sufficient to maintain a balance between strength and weight.

Printing orientation: If you have a 220x220 mm printing area (such as on a Creality Ender 3 v3), it is recommended to place the model diagonally to maximize the available space.



PrintSettings


no supports needed

layer length .2mm

filling density 20%

pqaredes 3

edge plate adhesion
