FABRIC ROLL SUPPORT AND CENTERING

Tags

Description

Request made from a friend that need to center a fabric roll.

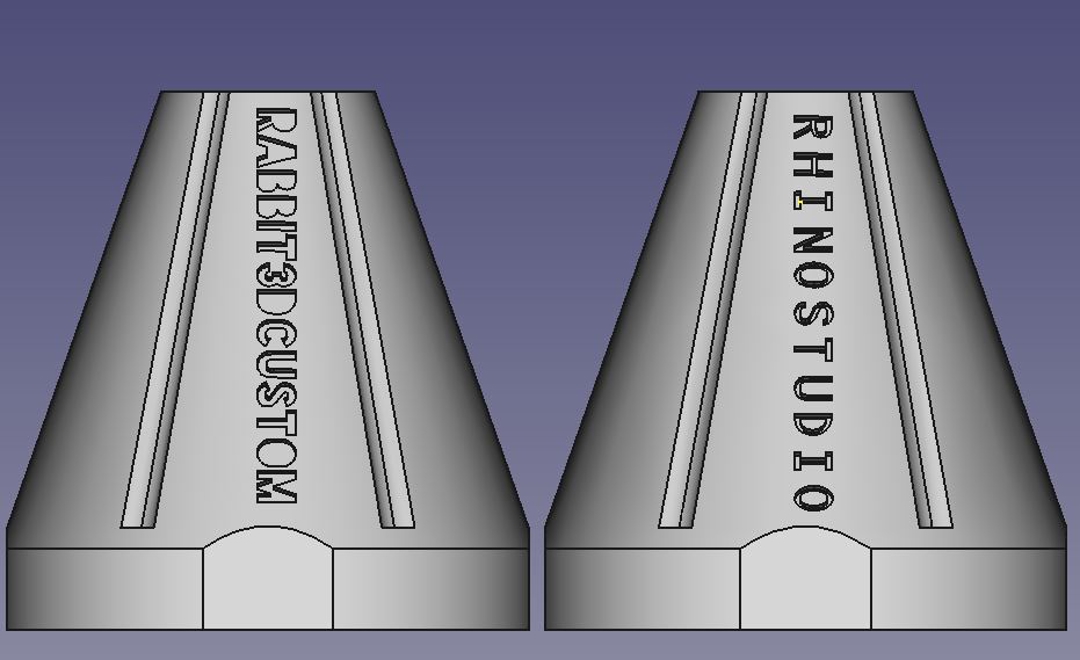

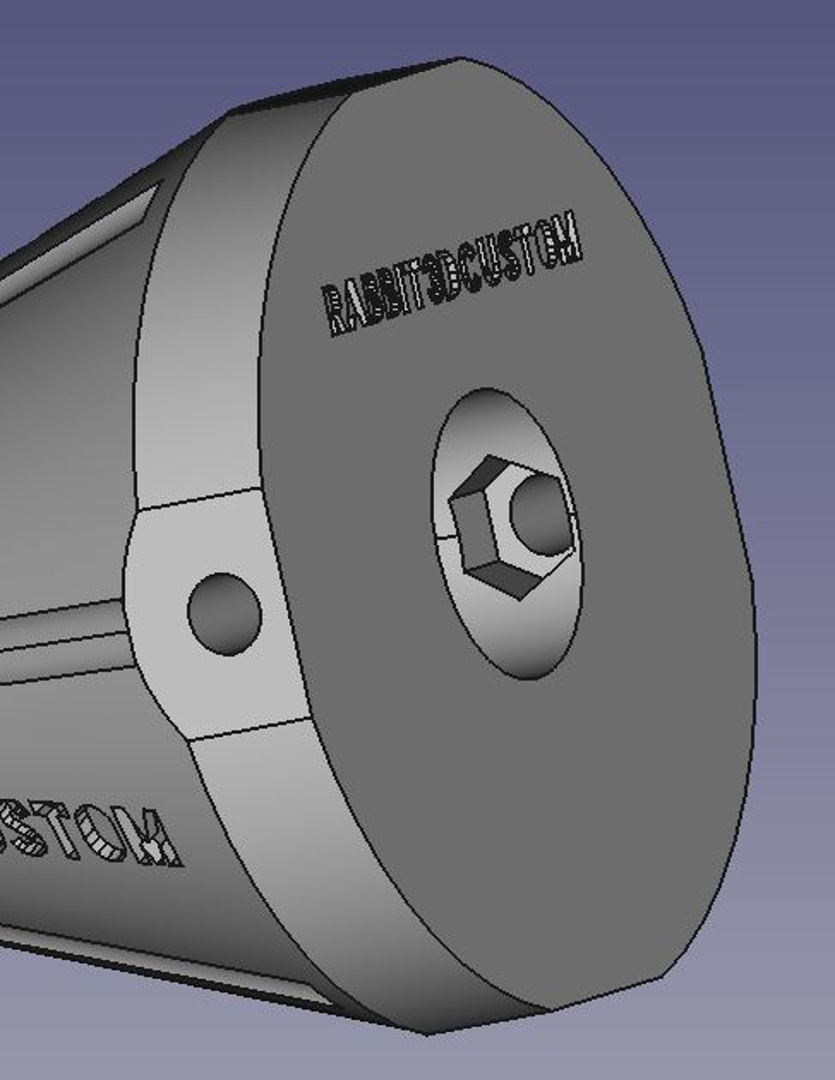

I was desing to fit several fabric suppor diameters with a M8 bolt and nut to tight it to the core bar.

I also added a handle to insert the M8 bolt into it to be tighten with the fingers.

PrintSettings

Printed with ED3V6 hotend in PETG.

Nozzle: 0.4

Layer height: 0.2(first), 0.28 the rest, could be more.

Infill: 25% Kind: adaptative cubic

Speed: 40mm/s

Support: No

Brim/Skirt: Skirt for purge, but not needed.

Raft: No

Note: Your printed should have the correct flow, the models are based on a 0.1 tolerance space.
