IKEA LACK TABLE STACKABLE LEG EXTENSION

Tags

Description

I design this model to raise the ikea lack table to fit an ender 3 printer inside and use the flat surface to add another printer above or the filament spools

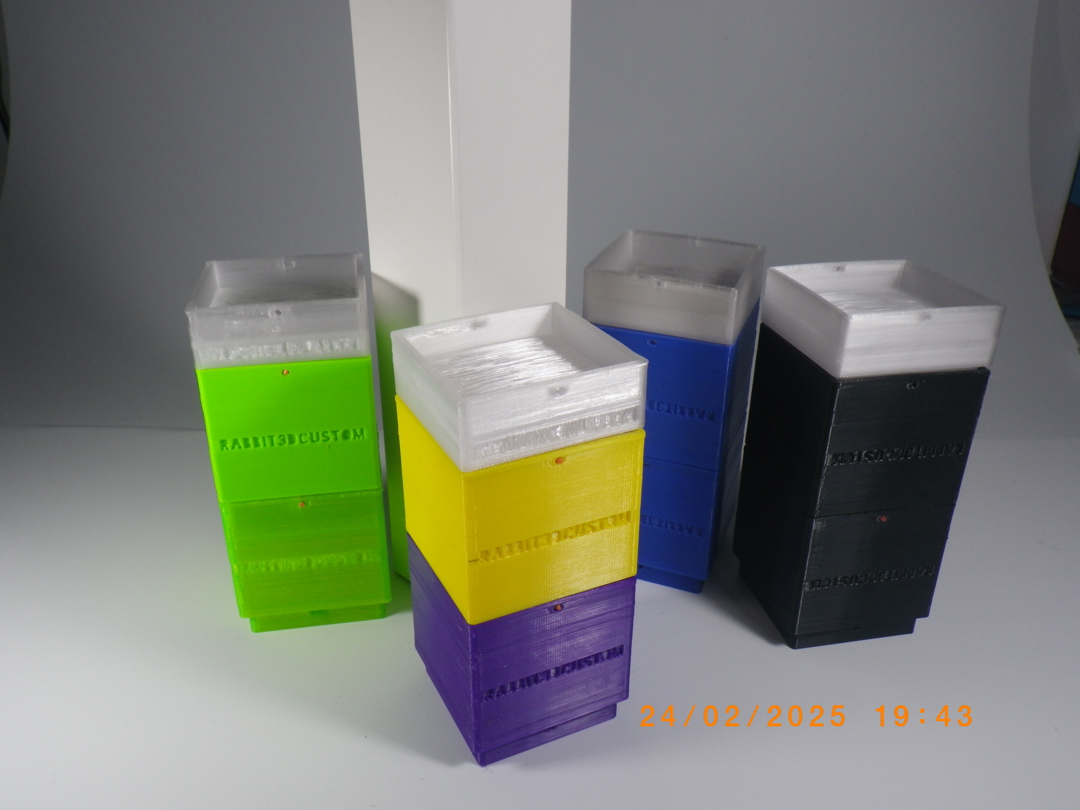

The model is designed to to be stackacle and two sizes to be added as your needs.

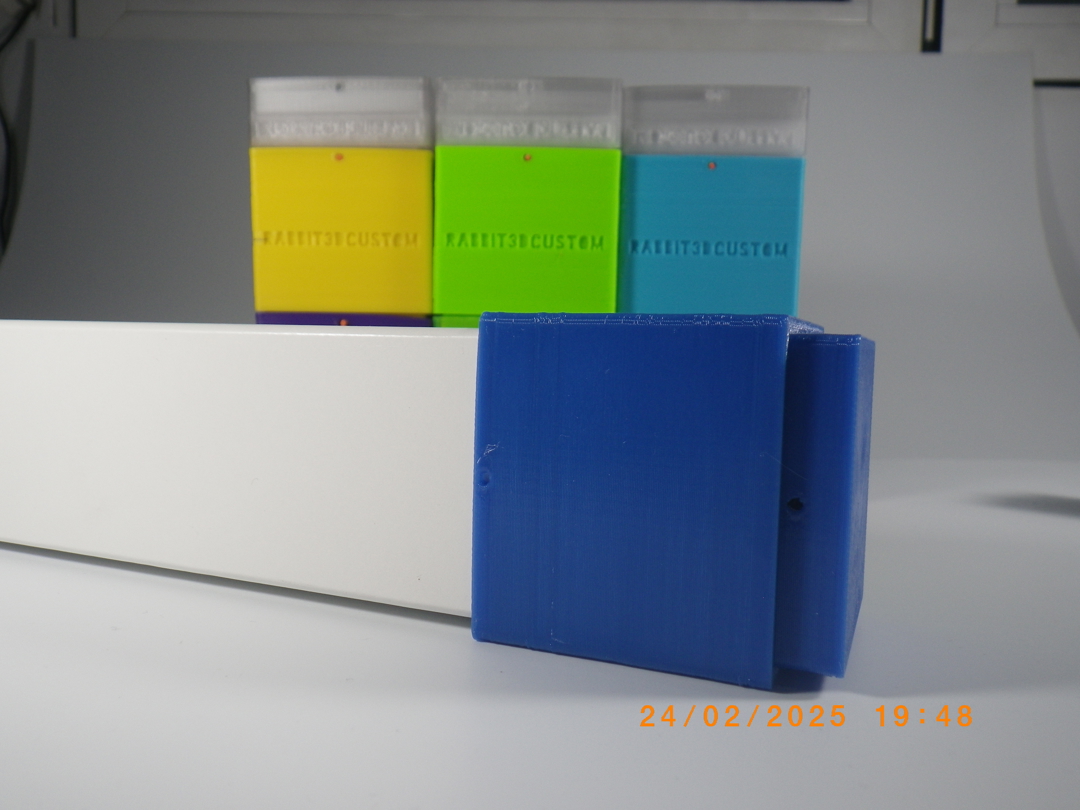

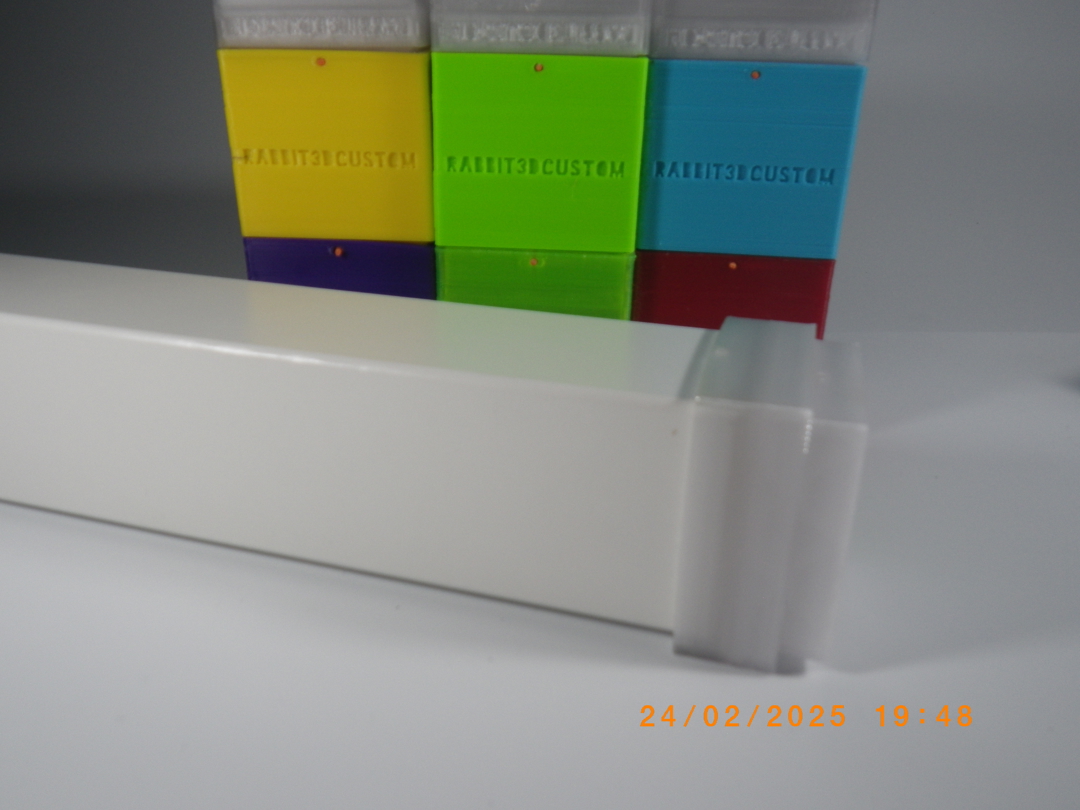

Each piece could be join with another using a 1,75mm filament so no need of any tool, nor hardware. The model is designed a little snug to be hold by it self to the lack leg. But you could make a hole to attach also the filament to it.

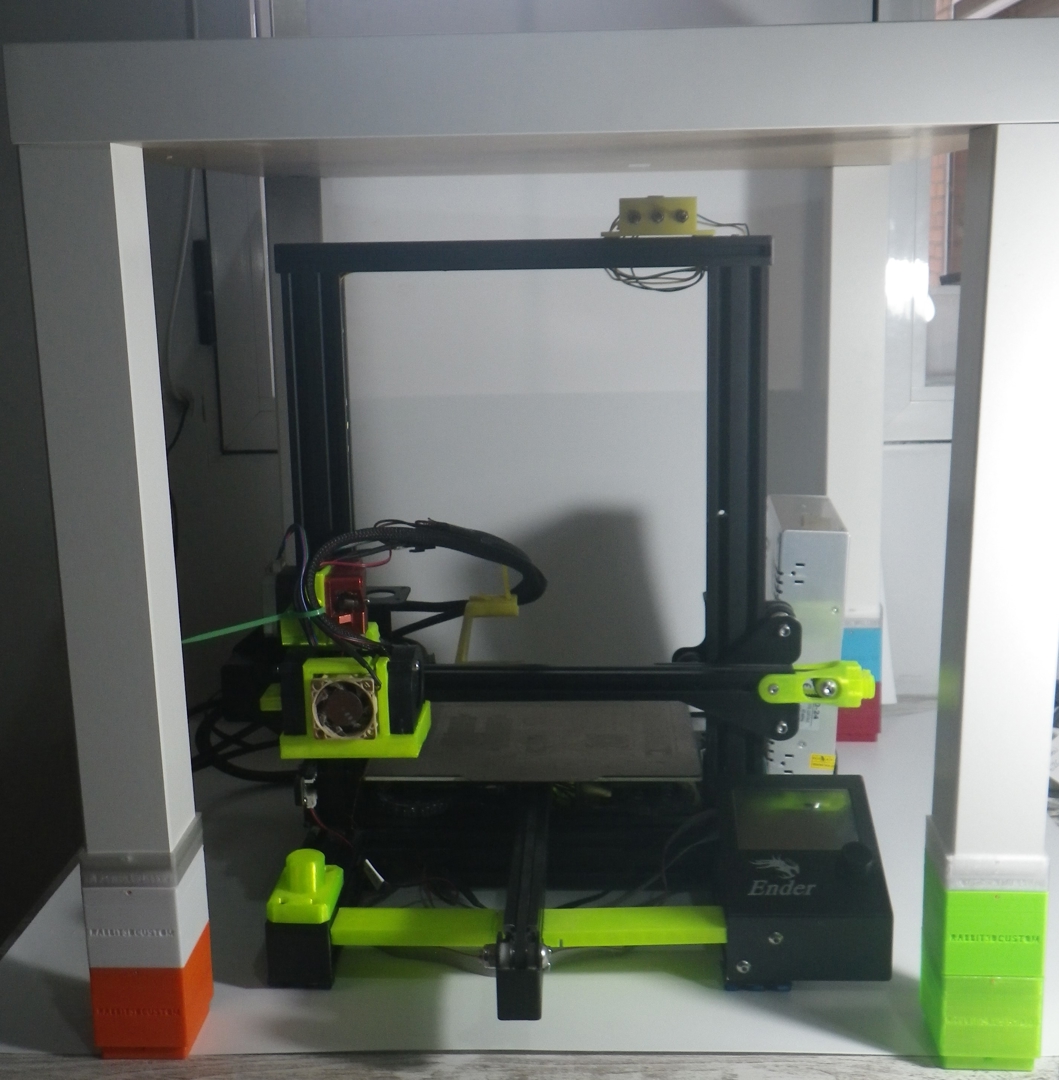

The ender3 will fit with two big size model and one small size model as shown in the pictures.

PrintSettings

Print it as is.

Printed with Ender3 and GeetechA10M modified with BTT 2in1 hotend

Material PLA and in a Ender 3 machine also in PETG

Nozzle: 0.4

Layer height: 0.2(first), 0.28 the rest.

Layers: wall 5; Bottom: 4; top 4

Infill: 15% or 18% Kind: gyroid.

Speed: 40mm/s

Support: No

Brim/Skirt: Skirt for purge, but not needed.

Raft: No

Note: Your printed should have the correct flow, the models are based on a 0.1 tolerance space and the models and ike lack legs may not fit well if your printer is not calibrate.
