JK BMS INVERTER PB MODEL CASINGS

Tags

Description

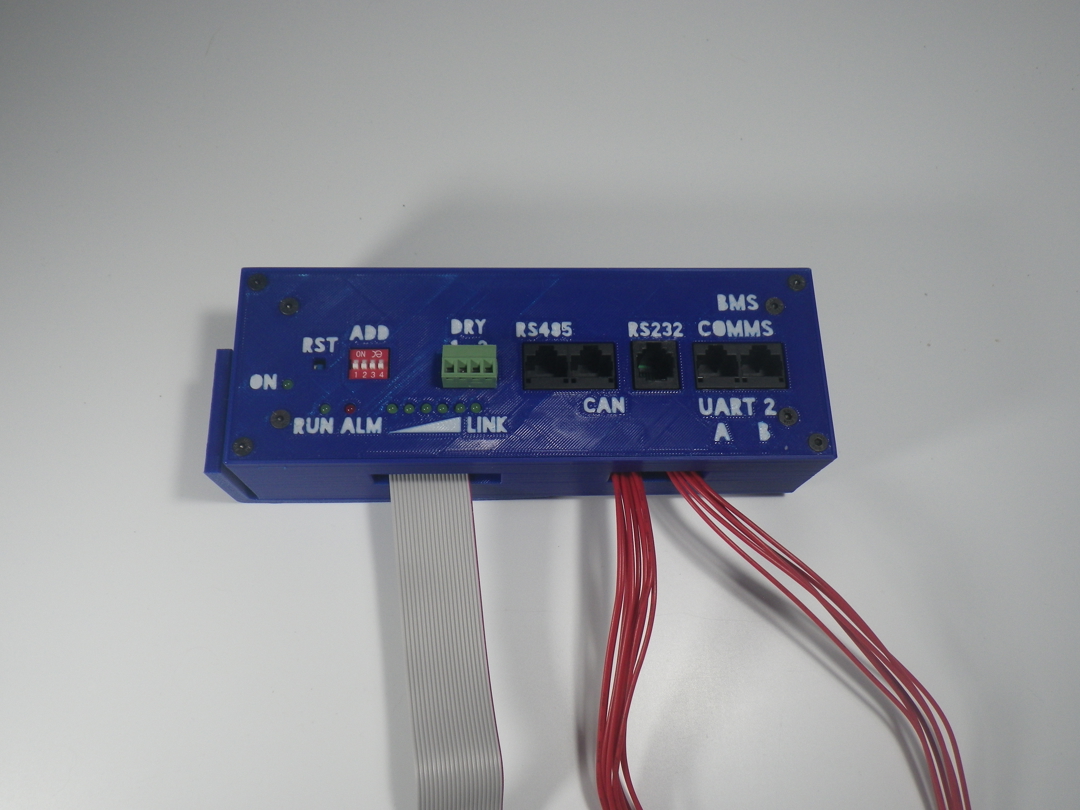

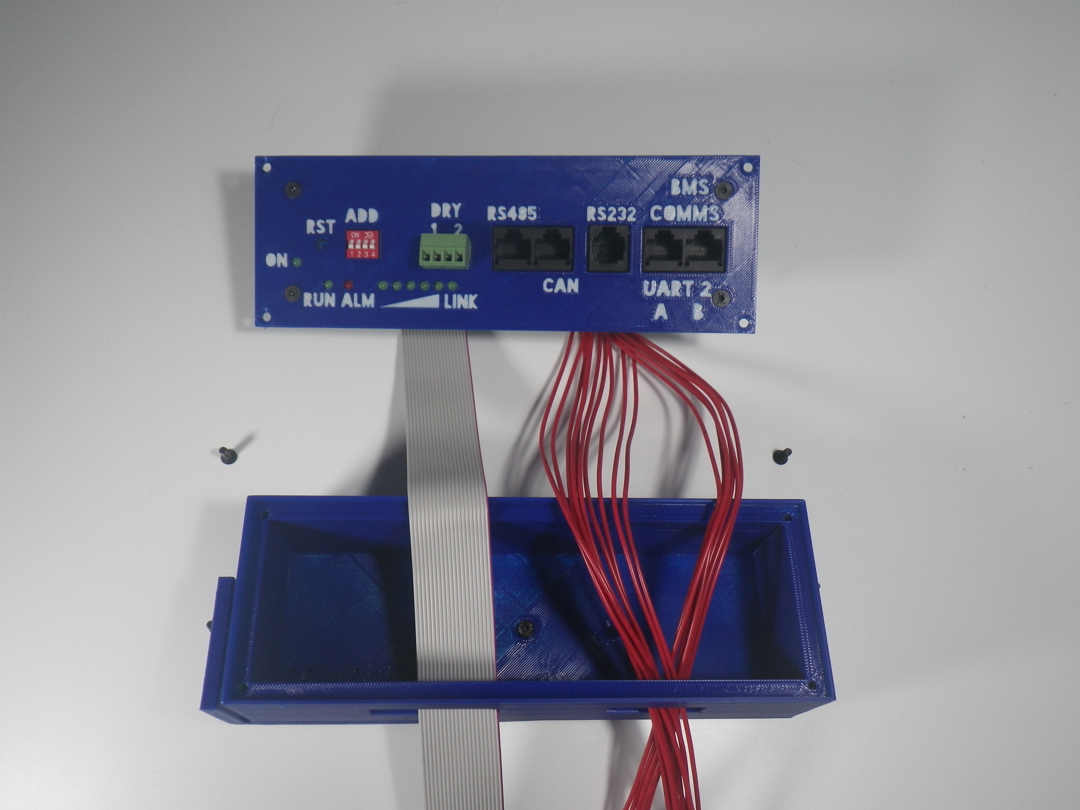

I design this model to protect and attach the JK-BMS Inverter(PB model) board to a shelf.

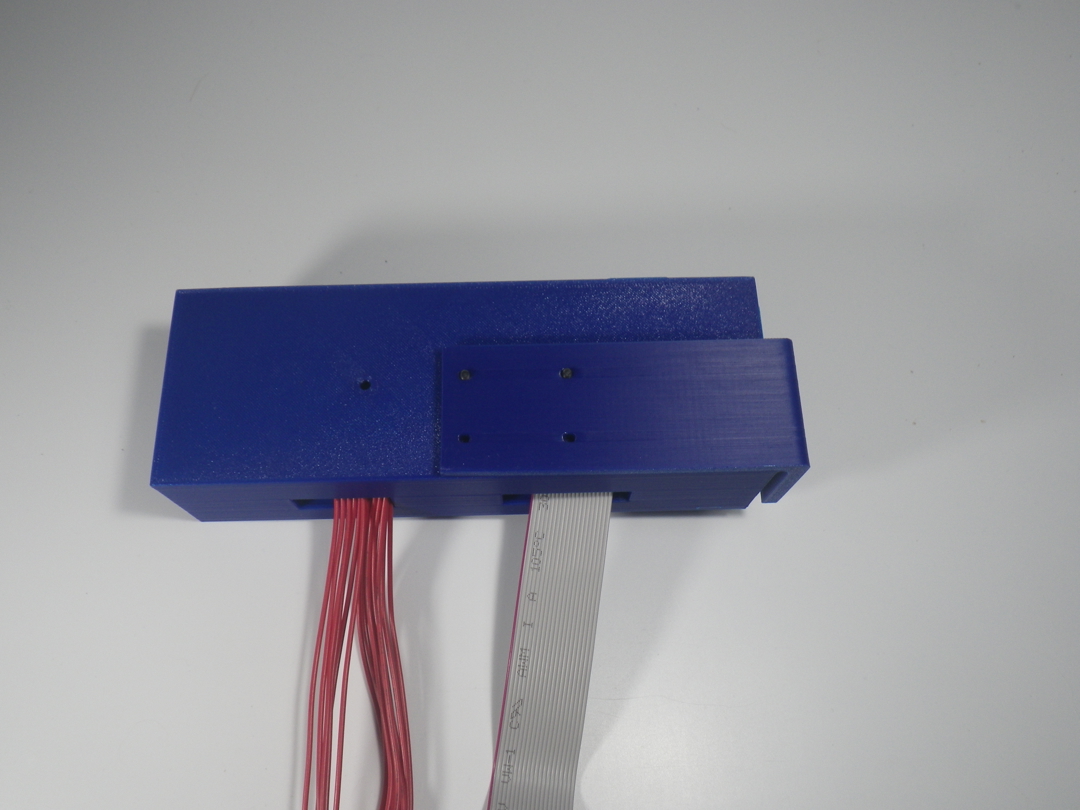

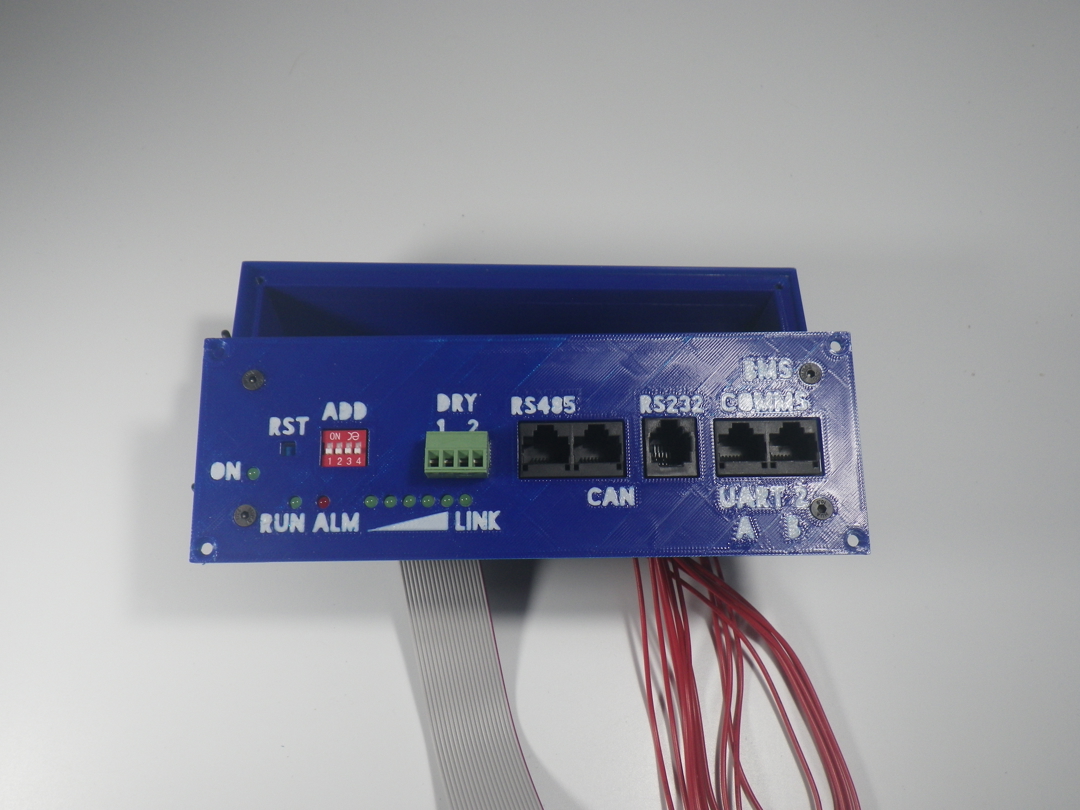

I provide two casings types, one with the cabling in the bottom and one with the cabling in the back. The bottom, could be to hang the board over the bms like i'm going to do. The back one could be use to have the board next to the bms in a table or directly in the shelf.

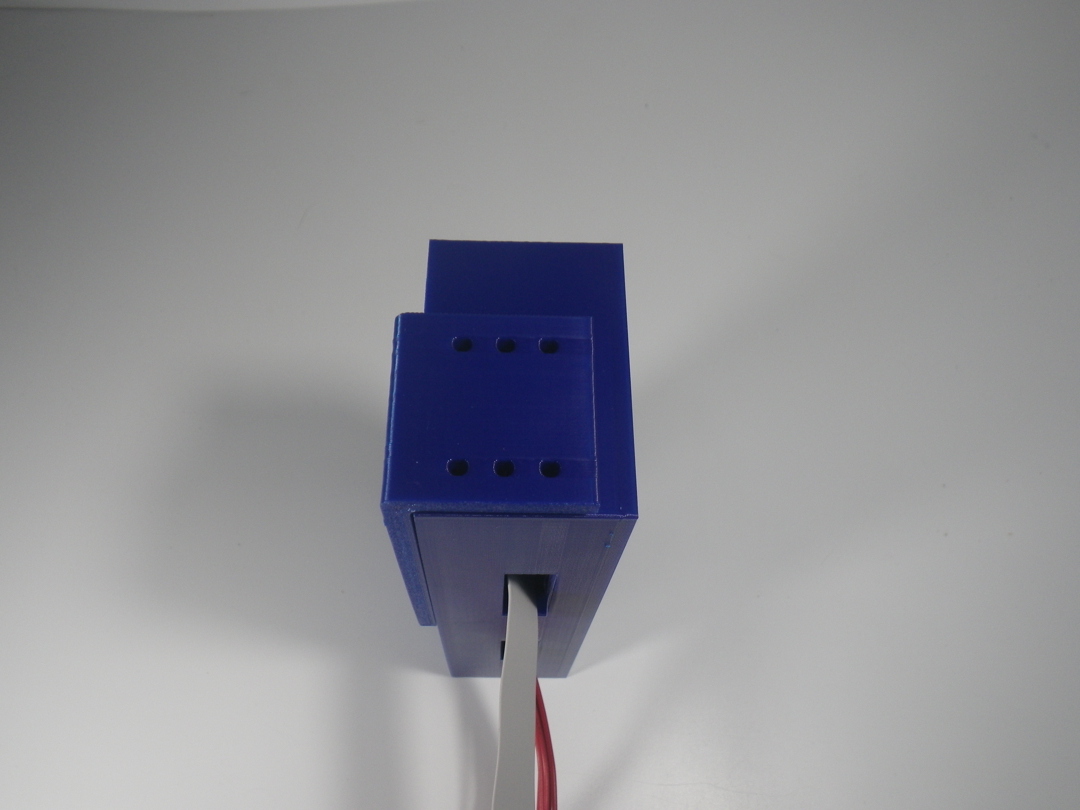

Both casings could be use with the support hanger from the left or the right side.

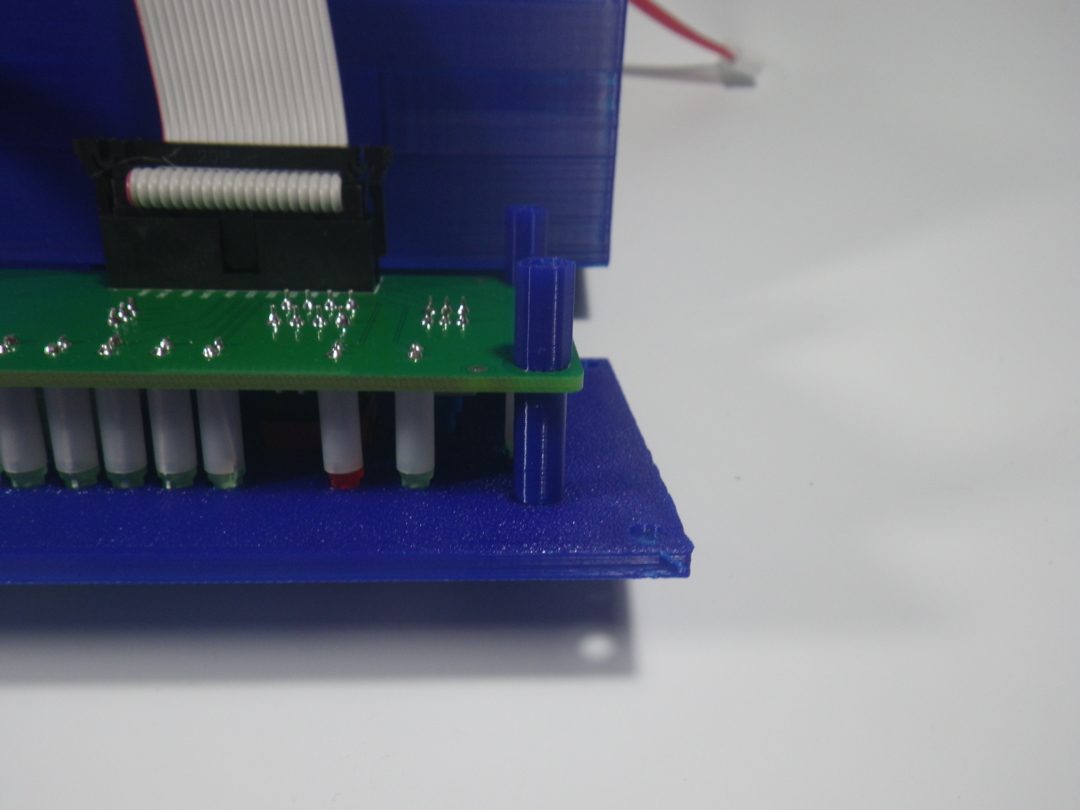

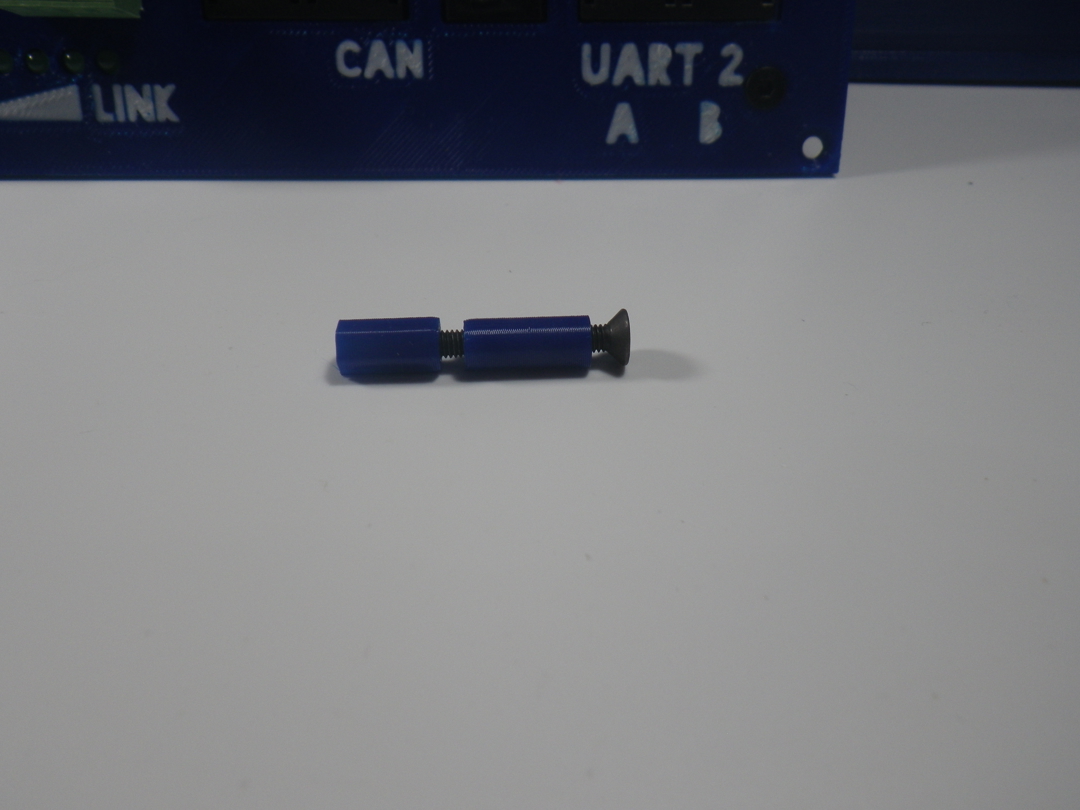

I provide a spacer to be in between the cover and the board, also i add a nut model to be held with the fingers, since the board is not going to have to much force to hold.

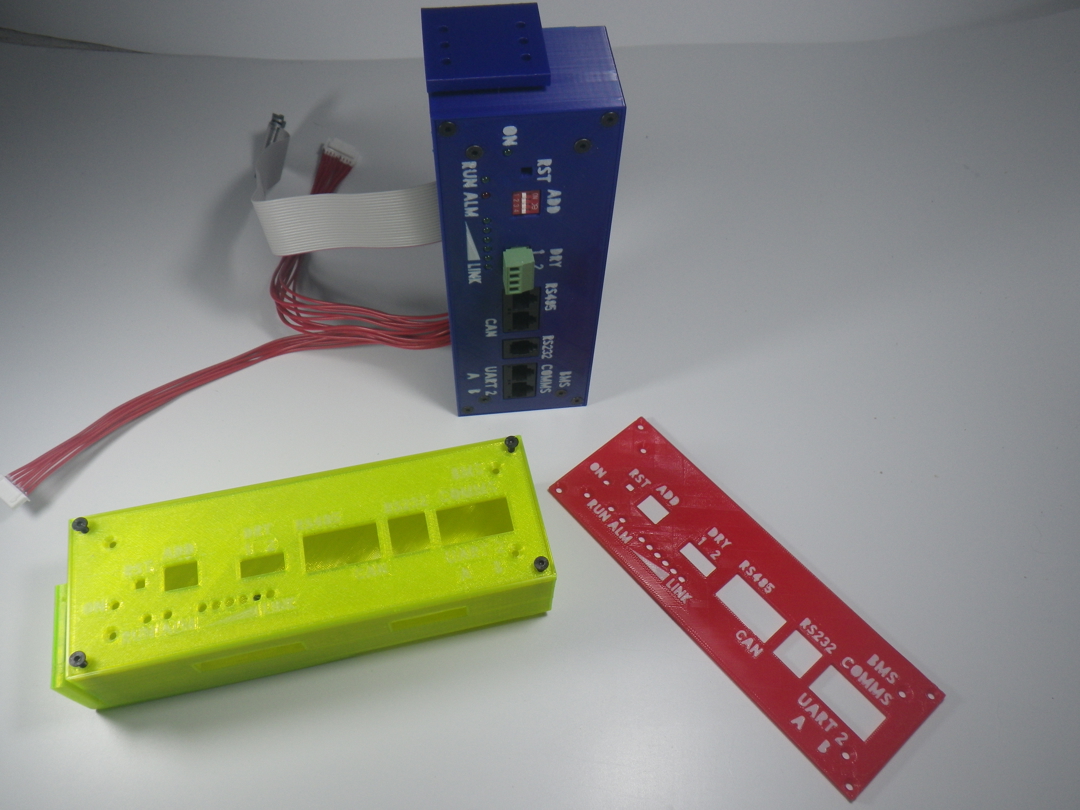

Model list:

-Cover

-Bottom casing

-Back casings

-Support attachment

-Spacer

-Nut

Instructions:

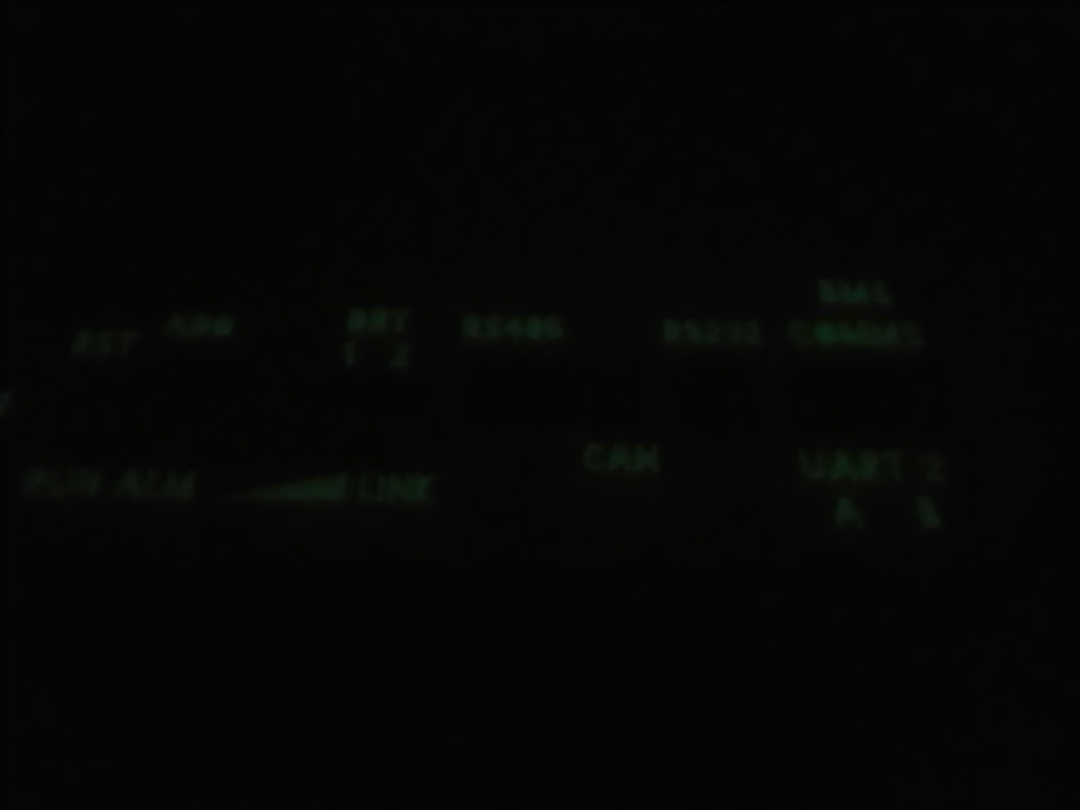

JK-BMS-Inverter-PanelCover.stl and JK-BMS-Inverter-PanelCover-FillerFullSOC.stl should be used at the same time(merge models) for a dual color printer.

BOM:

Part - ScrewType - Lenght - Amount

Case2Support - M3 - 10 - 2

Case2Lid - M3 - 10 - 4

Lid2Board - M3 - 25 - 4

Lid2Board - M3 Nuts - 4 - not mandatory

PrintSettings

Printed with Anycubic Kobra3

Material PLA or PETG

Nozzle: 0.4

Layer height: 0.2(first), 0.28 the rest.

Layers: wall 5; Bottom: 4; top 4

Infill: 15% or 18% Kind: gyroid.

Speed:

Support: No

Brim/Skirt: Skirt for purge and also brim to maintain the model glue to the bed, but not needed actually.

Raft: No

Note: Your printed should have the correct flow, the models are based on a 0.1 tolerance space and the casings and lid may not fit well if your printer is not calibrate.
