18650 BATTERY HOLDER FOR SOLDERING 6 PIECES

Tags

Description

I design this model to help me soldering with the spot welder the 18650 battery packs for my Powerwall.

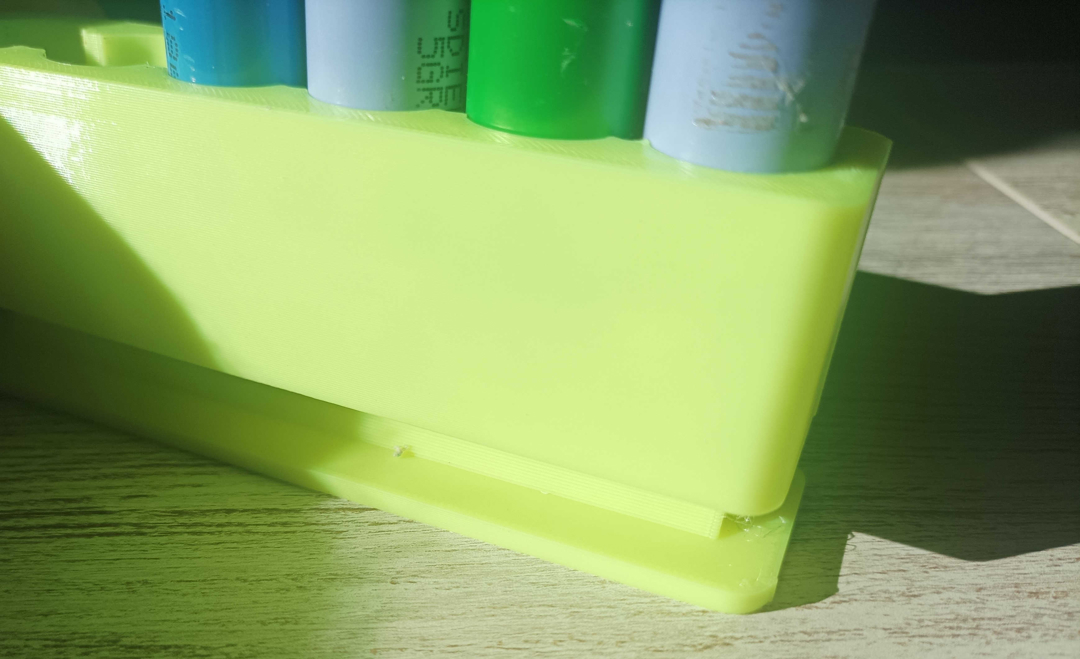

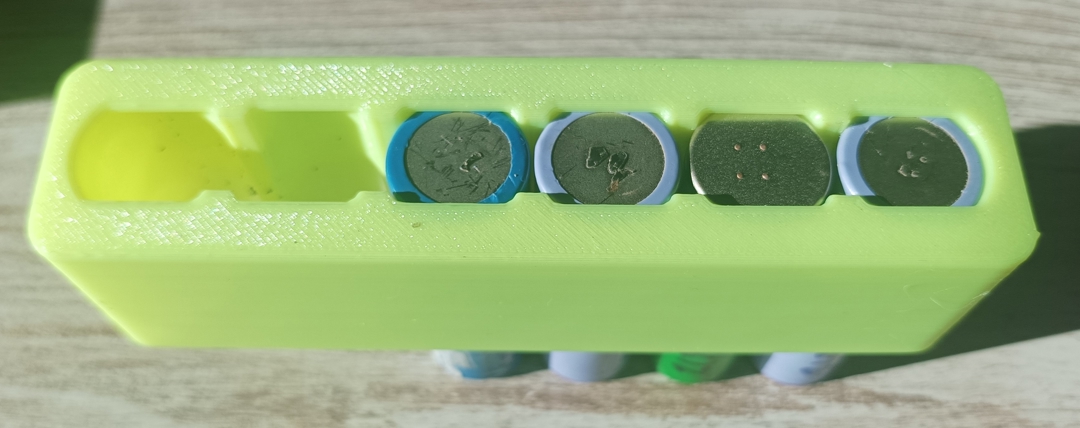

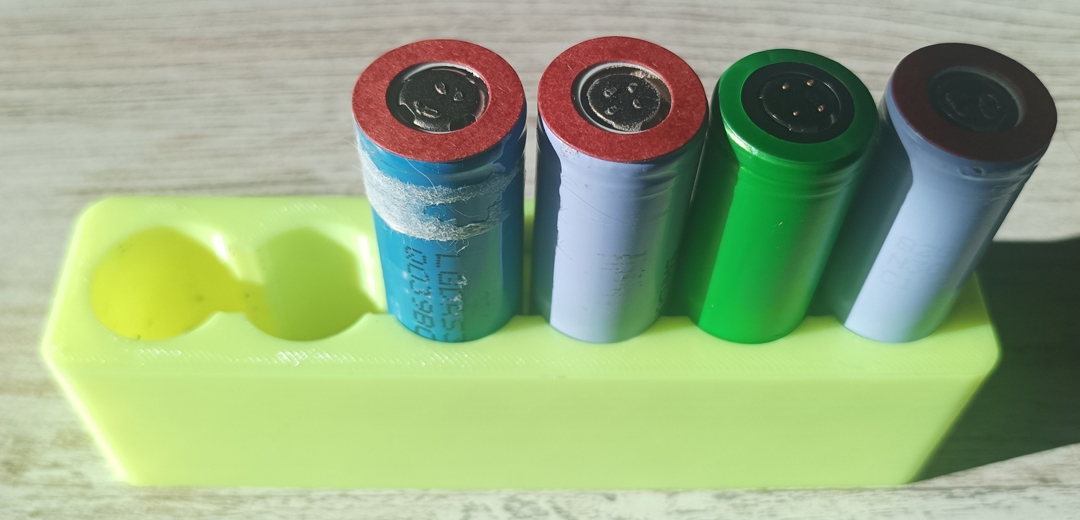

The model is designed to support six 18650 cells and be all aligned in high to use the spot welder.

Each cell will have between 1mm or 2mm free space with the neighbor, to have some space for ventilation and do not have contact, I recommend to use some hot glue to give the pack some sturdiness, with just a drop between them is enough.

Nickel strips of 10mm width max.

PrintSettings

Nozzle: 0.4

Layer height: 0.2(first), 0.28 the rest.

Layers: wall 5; Bottom: 4; top 4 (walls are 1mm, so no more than 2 layers will be printed)

Infill: 15% or 18% Kind: gyroid.

Speed: 40mm/s

Support: No

Brim/Skirt: Skirt for purge, but not needed.

Raft: No

Note: Your printed should have the correct flow, the models are based on a 0.1 tolerance space and the 18650 cell may not fit well if your printer is not calibrate.
